Basic Information

Brand

Walton

model

UY02

battery type

12V/7AH*1pc

Input

Capacity: 650VA/390W

Voltage Range: 162-290Vac

Frequency: 50Hz or 60Hz (Auto-Sensing)

Output

Voltage Regulation of AC Mode / Battery Normal : 220/230/240Vac +/- 10%

AC Mode Frequency: 47-53Hz for 50Hz or 57-63Hz for 60Hz; Battery Mode Frequency: 50Hz or 60Hz +/- 1Hz

Wave Form: Simulated Sinewave

Transfer Time: 2-6ms (Typical)

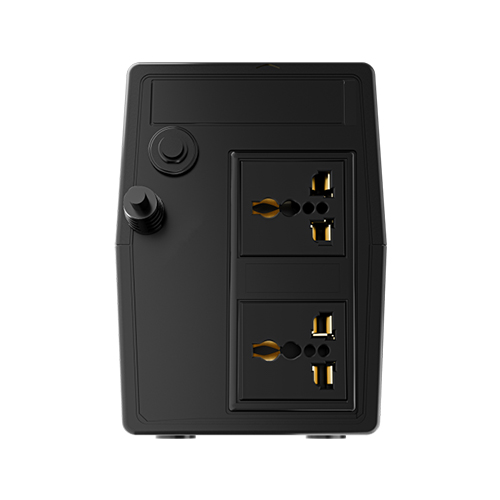

Outlet: Universal*2pcs For Backup & Surge Protection

Battery Details

Voltage: 12VDC

Type: 12V/7AH*1pc

Recharge Time: 4-6 Hours to Recover 90% Capacity

Advanced Battery Management: Yes

display

LCD Display: Input Voltage, Line Mode, Output Voltage, Battery Charge Level, Battery Mode, Load Level

Alarm

Battery Mode: Sounding Every 10 Seconds

Low Battery: Sounding Every Second

Over Load: Sounding Every 0.5 Seconds

Battery Replacement Alarm: Sounding Every 2 Seconds

Fault: Continuously Sounding

Wave form

Simulated Sinewave

Protection

Over Load Discharge Protection, Over Charge Protection, Short Circuit Protection, Over Voltage Protection, Under Voltage Protection, Over Heating Protection

Environment Requirement

Operating Temperature: 0° C - 40° C

Humidity: 0-90%, Non-Condensing

Acoustic Noise: <40 dB

dimension & weight

Dimension (D*W*H): 297 x 101 x 142 (mm)

Detailed Information

Special Feature

Warranty Information

warranty

- 1 Year Service Warranty With Spare Parts

- 6 Months Battery Warranty

Terms & Conditions

Warranty Terms & Conditions

This warranty does not cover any damage due to accident, electricity fault, natural causes or negligence. And the Authority retains the power to change, extend, correct, stop or cancel the warranty period without any prior notice.
